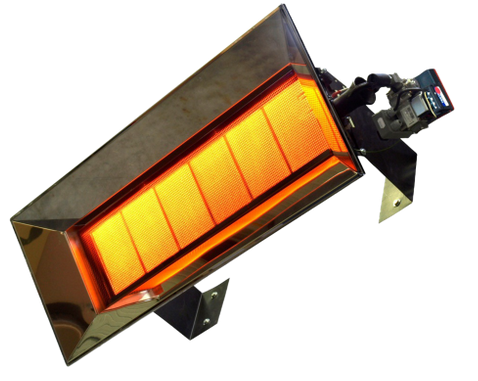

Flamrad 731A - 30kw NG/LPG Fired Automatic Plaque heater

The Flamrad Gas Fired Infrared radiant Heater 700 series are ideal for use in many commercial and industrial applications where full or localised heating is required.

Features.

Made in the UK under our ISO:9001 quality assured system.

Highly radiant efficient & controllable.

Fitted with gauze & reflectors to maximise radiant output.

100% gas shut off "fail safe" control.

Highly flexible range - complete heating scheme or perfect spot coverage.

All units supplied fully assembled complete with burner controls.

Individually factory test fired and certified.

5 year limited ceramic tile guarantee.

5 year limited heater body guarantee.

Aluminised Steel construction - robust & damage resistant.

Mounting heights from 2.5m to 18m.

Optional angled wall mounting on adjustable brackets.

Low cost maintenance, no moving parts.

TitleValue.

Heat Input - NG.

Heat Input - LPG.

30.4kw.

30.0kW.

Dimensions H x W x L (mm)

385 x 435 x 1425.

Inlet Connection.

Rc 1/2.

Minimum clearance to conbustable material (mm) (above / below /.

side / Font (horiz) / Back (horiz) / Front-45° / Back - 45°)

915 / 3355 /.

1525 / 1375 / 1375 / 2365 / 305.

mounting height - Horizontal.

6 to 18m.

mounting height - @ 30°.

4.5 - 15m.

Weight.

24kg.

Key features:

• Heat Input: NG-30.4Kw. LPG - 30.0Kw
• Mounting Height: 6 - 18m
• Dimensions: H385xW435xL1425mm
• Weight: 24Kg

Additional information:

• Brand: Flamrad
• Warranty: 1 year manufacturer's warranty
• Delivery: Dependent on stock availability. Check with us before ordering

Download PDF

For more information on Flamrad 731A - 30kw NG/LPG Fired Automatic Plaque heater talk to Puravent
