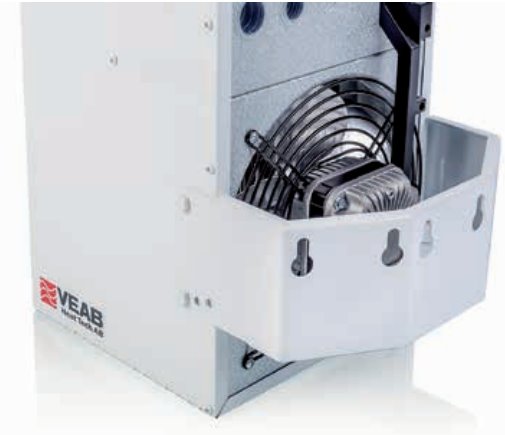

ENV-L 15 Electric fan heater for wall mounting

Product Code: 401538

ENV-L.

Electric fan heaters for wall mounting.

The ENV-L series of electric fan heaters rated up to 15 kW are designed for permanent heating of warehouses, industrial premises, garages, drying rooms, etc.

• Five output variants from 2 kW to 15 kW.

• Continuous or intermittent fan operation.

• Supplemented wall bracket that allows for vertically and horizontally adjustment of the fan heater.

• Air deflector for adjusting vertically the direction of the outlet air flow.

• Meets the Ecodesign directive 2009/125/EU and EU regulation 2015/1188.

• Delivered with room thermostat.

Design.

The casing is made of galvanized sheet steel painted white, and the heater elements are made of stainless steel to EN 1.4301. The supplemented wall bracket enables tilting in different directions. Degree of protection IP44 (splash-proof) and approved for use in humid and wet areas (e.g. drying rooms).

Control.

Temperature regulation and switching on/off are performed with the electronic room thermostat MCD4-1999 supplied. The thermostat has a built-in clock and calendar which can be programmed for lowering the temperature, e.g. during nights and weekends. Transition from reduced to normal temperatures can be adapted so that a comfortable temperature is achieved at the desired time (adaptive function). The above functions are a requirement to meet the Ecodesign directive 2009/125/EU and EU regulation 2015/1188, for locations which are heated for the comfort of people.

MCD4-1999 is supplied with a frame which enables external placement. Protection class IP21.

Key features:
