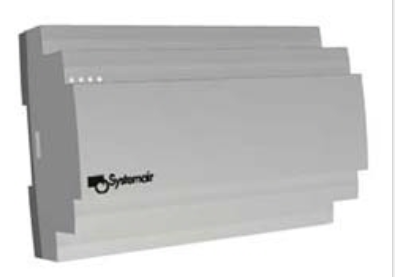

E0-R Corrigo Remote Displ.

Repeater E0-R for handling long distances between the controller Corrigo E and the external control unit E-DSP. Supply voltage 24 V AC. Up to 6 Corrigo units can be addressed. DIN mounting, up to 1200 m cable length. For display unit E-DSP. The display text can be changed. E0-R can be used when there is need for a remote display for Corrigo E and the distance between the controller and the display/buttons is more than 10 meters. The repeater makes it possible to use a cable length up to 1200 m. The E0-R model should be mounted in a cabinet, has protection class IP20 and is supplied by 24 V AC.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on E0-R Corrigo Remote Displ. talk to Puravent
