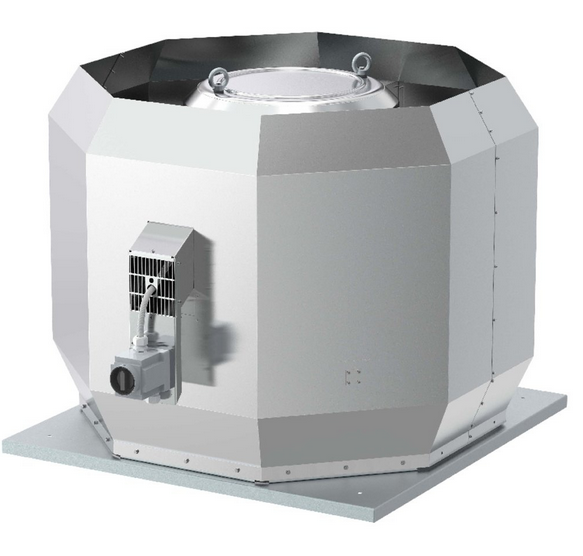

DVV 800D6-XL/120 IE3 EMC 26,500m³/h, 5.5kW Centrifugal roof fan

Motor outside of the air stream.

deg C ertical exhaust of media up to 120permanently.

Suitable for coastal applications.

deg C ide range of accessories.

IE3 high efficiency motor (single speed) motor inside.

deg C TC thermal protection serial built-in motor.

Sucking side connection acc. EUROVENT.

Sound attenuator available as accessory HSDV (preferable factory mounted, the marking of the fan with silencer is DVVI)

Octagonal casing is manufactured from seawater resistant aluminium. The base frame consists of hot-dip galvanised steel. Impeller with backward-curved blades is manufactured from steel and galvanized. For C4 (and up) corrosion category additional surface protection of exposed parts is recommended.

Motor cooling with fresh air via air duct. The motor protection is provided by customers. Service switch serial on cooling duct. For speed control use combination of frequency converter and appropriateFilter to motor side (sine or du/dt), respectively observe instructions. EMC shielded cable from motor to service switch serial built-in (please check wiring diagram for connection suitability).

Centrifugal roof fan, 120掳 Continuous, vertical discharge.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
