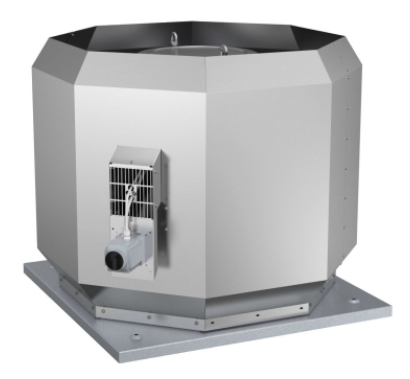

DVV 800D4-XS/120C IE3 EMC ATEX Roof Fan

Roof fans DVV-Ex are designed to exhaustpotentially explosive atmospheres (mixtures of air and inflammables such as gases and steam) fromexplosion hazardous areas. The DVV-Exfans have impellers with backward-curved blades and IECmotor in explosion protection "flameproof enclosure" - Ex d. The casing is manufactured from seawater-resistant aluminium and the base frame from hot dip galvanised steel, with a copper inlet cone.

Suitable for exhaust from zones 1 or 2, field of application II, for gases of groups A and B and temperature classes T1 to T4. The fans are classified to category 2G. Terminal box in explosion protection "increased safety" - II 2G Ex e IIC T5/T6 ismounted on the casing. Up to request additionally equipped and marked fans are available to achieve extended temperature respectively gas range: II 2G c IIB T3 (-20 < Ta < 55°C), II 2G c IIB+H2 T3 (-20 < Ta < 55°C), II 2Gc IIB T4 (-40 < Ta < 40°C).

Toenable protectionof motor from overheating DVV-Ex fans have serial built-inthermistors (PTC) with external leads(connection to U-EK230E motor protection relay as accessory possible). On request the fan can be factory fitted with sound attenuator HSDV (accessory) on outlet (marking of the fan DVVI-Ex).

Certified according to ATEX.

Speed-controllable via frequency converter.

Sucking side connection according EUROVENT.

Marking of the serial equipped fan (c = constructional protection): II 2G c IIB T4.

Key features:

• DVV/120C. IE3 EMC
• Airflow: 31,500m³/h

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on DVV 800D4-XS/120C IE3 EMC ATEX Roof Fan talk to Puravent
