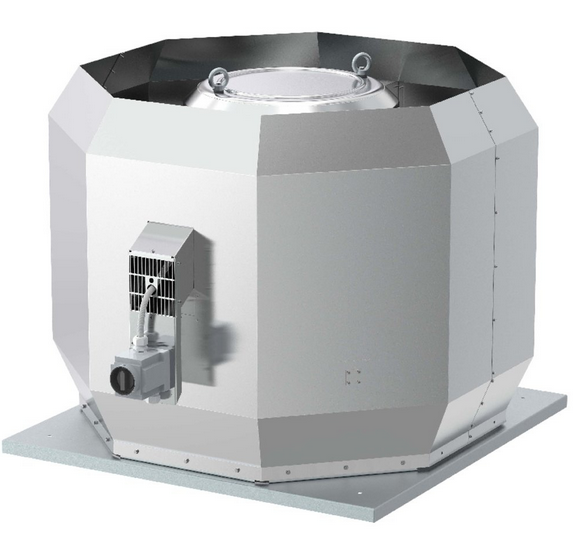

DVV 630D4-XL/F600 IE3 Centrifugal roof fan

DVV smoke and heat extract fans are used in case of fire to extract smoke gases from rooms, and also during normal working conditions for standard ventilation.

PLEASE DOWNLOAD THE PDF BROCHURE TO FIND THE MODEL YOU REQUIRE.

Type 'DVV' into the search bar to view all the variants of this range.

• Smoke and heat extract unit.

• 600°C / 120 min.

• Daily ventilation up to 120°C medium.

• Vertical exhaust.

• Suitable for coastal applications.

• Wide range of accessories.

• Tested acc. to EN 12101-3:2015 at ZAG Ljubljana.

• CE-certified acc. to EN 12101-3:2015 by BSI.

• IE3 single speed high efficiency motor inside.

• PTC thermal protection serial built-in motor.

• Sucking side connection acc.

EUROVENT.

• Sound attenuator available as accessory HSDV (preferable factory mounted, the marking of the fan with silencer is DVVI)

• Generally suitable for ambiental temperature -20 to +40°C.

Key features:

• Continuous 120°C, max - 600°C/2h
• Generally suitable for ambient temperature -20 to +40°C
• Horizontal discharge 20,900m³/h
• Vertical exhaust

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on DVV 630D4-XL/F600 IE3 Centrifugal roof fan talk to Puravent
