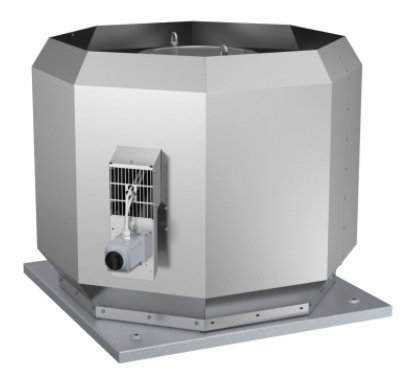

DVV 1000D4-XP/120C IE3 EMC Centrifugal roof fan, 120°C continuous, vertical discharge. 56,000m³/h

Octagonal casing is manufactured from seawater resistant aluminium. The base frame consists of hot-dip galvanised steel. Impeller with backward-curved blades is manufactured from steel and galvanized. For C4 (and up) corrosion category additional surface protection of exposed parts is recommended.

Motor cooling with fresh air via air duct. The motor protection is provided by customers. Service switch serial on cooling duct. For speed control use combination of frequency converter and appropriateFilter to motor side (sine or du/dt), respectively observe instructions. EMC shielded cable from motor to service switch serial built-in (please check wiring diagram for connection suitability).

Motor outside of the air stream.

Vertical exhaust of media up to 120°C permanently.

Suitable for coastal applications.

Wide range of accessories.

IE3 high efficiency motor (single speed) motor inside.

PTC thermal protection serial built-in motor.

Sucking side connection acc. EUROVENT.

Sound attenuator available as accessory HSDV (preferable factory mounted, the marking of the fan with silencer is DVVI)

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on DVV 1000D4-XP/120C IE3 EMC Centrifugal roof fan, 120°C continuous, vertical discharge. 56,000m³/h talk to Puravent
