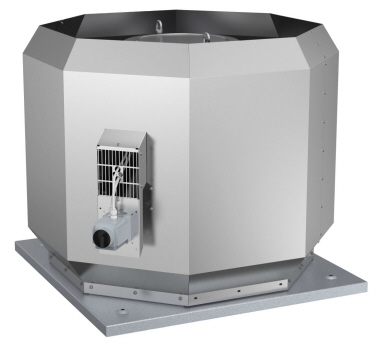

DVV 1000D4-6-XM/120C. Centrifugal roof fan, 120?C continuous, vertical discharge. 51,001m?/h

Octagonal casing is manufactured from seawater resistant aluminium. The base frame consists of hot-dip galvanised steel. Impeller with backward-curved blades is manufactured from galvanised steel. For C4 (and up) corrosion category additional surface protection of exposed parts is recommended.

Motor cooling with fresh air via air duct. The motor protection is provided by customers. Service switch serial on cooling duct. For speed control of single speed motors use combination of frequency converter and appropriate filter to motor side (sine or du/dt), respectively observe instructions. At frequency controlled units additional EMC protection could be needed (on request).

Motor outside of the air stream.

Vertical exhaust of media up to 120°C permanently.

Suitable for coastal applications.

Wide range of accessories.

IE2 high efficiency motor (single speed) respectively two speed IE1 motor inside.

PTC thermal protection serial built-in motor.

Sucking side connection acc. EUROVENT.

Sound attenuator available as accessory HSDV (preferable factory mounted, the marking of the fan with silencer is DVVI)

Out of stock.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164
