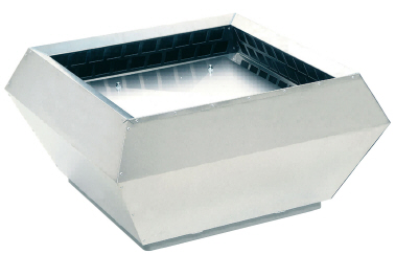

DVS 310EV Centrifugal Roof Fan,

The DVS/DHS/DVSI models have impellers with backward curved blades and external rotor motors. All motors are speed controllable over the voltage. Frequency inverters must have an allpole sineFilter. The motors are suspended on effective vibration dampers. To protect the motors from overheating the DVS/DHS/DVSI up to size 311 have integral thermal contacts, from size 355 with external leads for connection to a motor protection device. The casing is made from aluminum and the base frame is powder-coated galvanised steel. Suitable for coastal applications. The impellers up to size 355 are manufactured from polyamide PA6 25GV, from size 400 in Aluminium.

Key features:

• DVS 310EV Centrifugal roof fan
• Temp: 40°C continuous
• Vertical discharge
• AirVolume: 1,460m³/h

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on DVS 310EV Centrifugal Roof Fan, talk to Puravent
