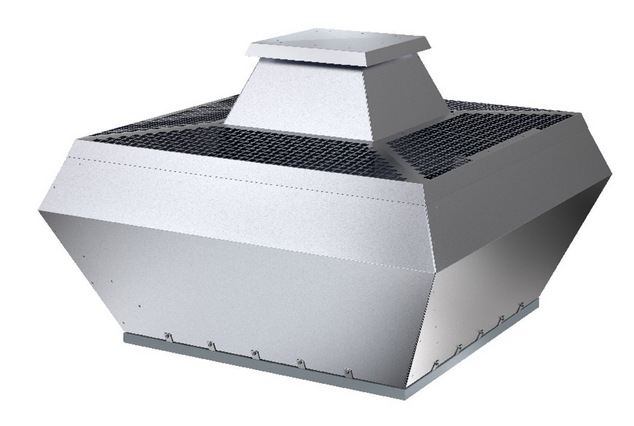

DVNI 900D6 IE3 Centrifugal roof fan, 120°C continuous, vertical discharge. 32,360m³/h.

High efficient motor IE3.

Speed-controllable via frequency converter.

Integral cold conductor (PTC)

Standard motor outside the air stream.

Max temperature of transported air up to 120°C.

Suitable for coastal applications.

Vertical exhaust.

Low sound level.

Easy to maintain and reliable.

The DVNI fans size 900D6 are equipped with high efficient IE3 motors. The casing and impeller with backward-curved blades is manufactured from seawater resistant aluminum. The base frame is manufactured from galvanized steel sheet and the integrated protection guard consists of powder-coated galvanized steel. Speed control is only possible by using a frequency converter. Motor protection is done by cold conductors (PTC), which have to be connected to an external motor protection device. The motor is suspended on effective vibration dampers.

The DVNI version has 50 mm mineral wool insulation for lower sound level.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

Download PDF

For more information on DVNI 900D6 IE3 Centrifugal roof fan, 120°C continuous, vertical discharge. 32,360m³/h. talk to Puravent
