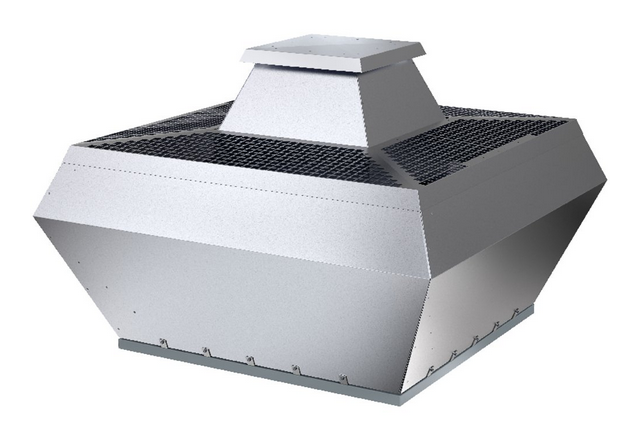

DVN 900D6 IE3 Centrifugal roof fan, 120�C continuous, vertical discharge. 32,000m�/h

Skip to the end of the images gallery









Reset

Skip to the beginning of the images gallery Details Standard motor outside the air stream. Max temperature of transported air 120�C. Suitable for coastal applications. Vertical exhaust. Low sound level. The casing and impeller with backward-curved blades is manufactured from seawater resistant aluminum. The base frame and the integrated protection guard consist of powder-coated galvanised steel. The motor is suspended on effective vibration dampers. The single-phase motor is speed-controllable via transformer and the three-phase motor additionally via D/Y connection. To protect the motor from overheating the fan has integral thermal contacts with external leads for connection to a motor protection device. The DVNI version has a 50 mm mineral wool insulation for lower sound level. Additional Details Additional Details Delivery This item is usually stocked overseas and takes about 2-3 weeks to deliver. If stock in UK deliverable in 3-4 days. Enquire on 01729 824108 Brand Systemair Warranty 1 year manufacturers warranty

For more information on DVN 900D6 IE3 Centrifugal roof fan, 120�C continuous, vertical discharge. 32,000m�/h talk to Puravent
