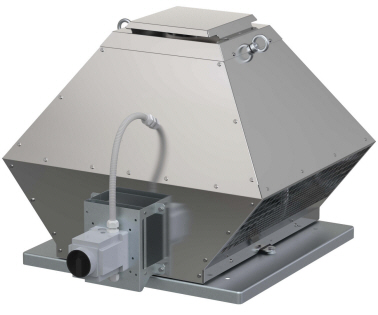

DVG-T/H 630D6 380V/60Hz. Centrifugal 3-phase roof fan

Normal ventilation up to 120°C continuous operation.

3~ 380V motor inside.

Thermal motor protection built-in (PTC)

Horizontal exhaust.

Service switch serial.

Suitable for coastal applications.

Wide range of accessories.

Easy access to motor and impeller for cleaning and service.

The casing is manufactured from seawater resistant aluminium. The base frame is made of hot-dip galvanised steel. Impeller with backward-curved blades is manufactured from steel and galvanised. Motor outside air stream is cooled with fresh air. At frequency controlled units additional EMC protection could be needed (on request). Connection on the sucking side up to EUROVENT.

Additional information:

• Brand: Systemair
• Warranty: 1 year manufacturer's warranty
• Delivery: This item is usually stocked overseas and takes about 2–3 weeks to deliver. If held in UK stock, available for delivery in 3–4 days. Enquire on 01609 243164

For more information on DVG-T/H 630D6 380V/60Hz. Centrifugal 3-phase roof fan talk to Puravent
