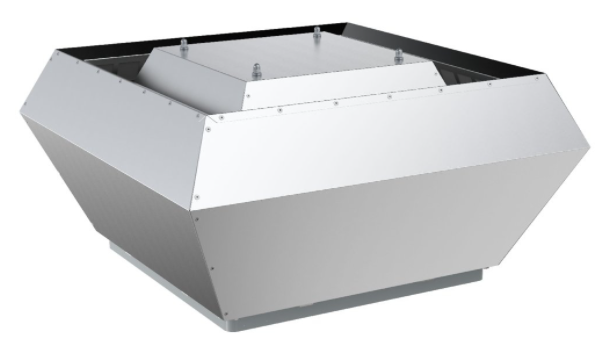

DVCI 315-P Single phase Centrifugal roof fan, insulated, pressure control, vertical discharge. 2,370m�/h

Skip to the end of the images gallery









Reset

Skip to the beginning of the images gallery Details The DVCI-P roof fans are driven by EC- external rotor motors, so called energy saving motors with high efficiency. The input voltage for single phase units can vary between 200 and 277V, for three phase units between 380 and 480V. All motors are suitable for 50Hz and 60Hz and from size 355 up to 710 suspended on effective vibration dampers. Motor protection is integrated in the electronics of the motor, no additional external motor protection device is needed. The DVCI-P versions have integrated pressure sensors and the electronics are programmed for a pressure constant operation. Casing from seawater-resistant aluminum with an 50 mm mineral wool insulation for low noise level, base frame from galvanised steel. Backward curved impellers manufactured from polyamide PA for size 190 and 225. From 315 up to 710 impellers manufactured from polypropylene PP. 100 % speed controllable Integrated motor protection Low noise level Safe and maintenance free operation Energy-saving Additional Details Additional Details Delivery This item is usually stocked overseas and takes about 2-3 weeks to deliver. If stock in UK deliverable in 3-4 days. Enquire on 01729 824108 Brand Systemair Warranty 1 year manufacturers warranty

For more information on DVCI 315-P Single phase Centrifugal roof fan, insulated, pressure control, vertical discharge. 2,370m�/h talk to Puravent
