Cyclone-26 Misting Fan

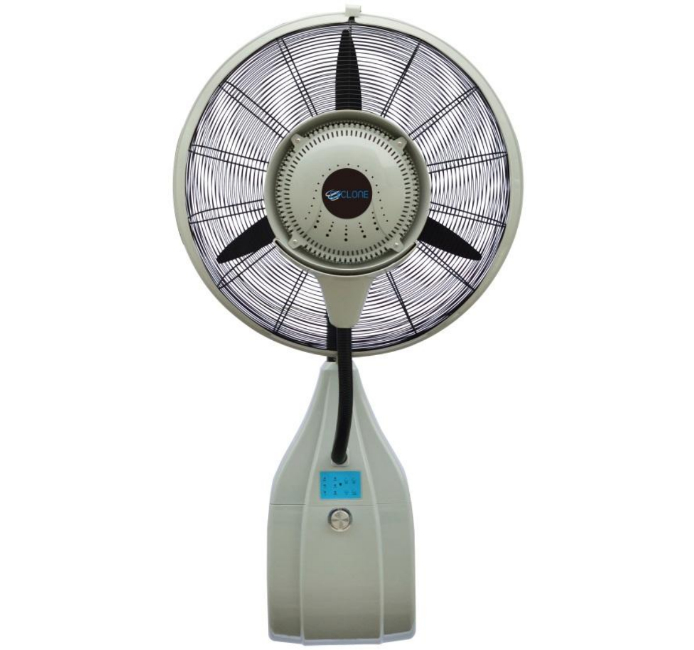

Cyclone 26" Wall Mounted Misting Fan.

A brilliant cooling fan for permanent installation within semi sheltered and well ventilated applications. These wall mounted misting fans have a on board tank but can also be connected to a permanent piped water supply. When on and oscillating, they provide a fine cooling mist blown over an area of roughly 50m. Ideal applications include equine and livestock buildings.

Multifunctional remote control: fan speed, mist volume, time.

Thermal protection (low temperature rise)

90° oscillating angle adjustment + height adjustment.

Safe guard protection, anti-rust.

Adjustable misting volume - large mist to tiny droplets.

Water supply device to achieve maximum water pressure 8Mpa.

Easy maintenance - centrifugal mist system without nozzles & water filters.

'.

Speed(H/M/L)

1400/1250/1100rpm.

MaxMistingVolume.

3.5 L/h.

TankCapacity&Usage.

7L-Continuous use.

Voltage.

220V.

IP rating.

IP24.

AirflowVolume(H/M/L)

13200/10440/8580m³/hr.

SoundLevel(H/M/L)

68/60/55dBA.

ProductDimensions(WxHxD)

726x1435x473mm.

BoxedDimensions(WxHxD)

880x770x520mm.

ProductWeight.

23.3kg.

BoxedWeight.

28.3kg.

Key features:

• Wall mounted
• 13200 m3/hr
• 26" fan blade
• Mist water flow 3.5L/hr

Additional information:

• Brand: GIS
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order

Download PDF

For more information on Cyclone-26 Misting Fan talk to Puravent
