CWK Cold water fed cooling battery for circular ducts
Product Code: CWK
The CWK with circular duct connection uses chilled water as the energy carrier and is used for cooling the ventilation air in a ventilation system. The CWK can also be used for cooling individual rooms or zones. For controlling the room or supply air temperature, the duct cooler is supplemented with regulators, sensors, actuators, valves and anti-freeze protection.
7 standard sizes.
Circular duct connection with rubber seals.
Casing of Aluzinc-coated sheet steel, AZ 185.
Openable cover for inspection and cleaning.
Stainless steel drip tray for collecting the condensate.
Conforms to Air tightness class C to EN 15727.

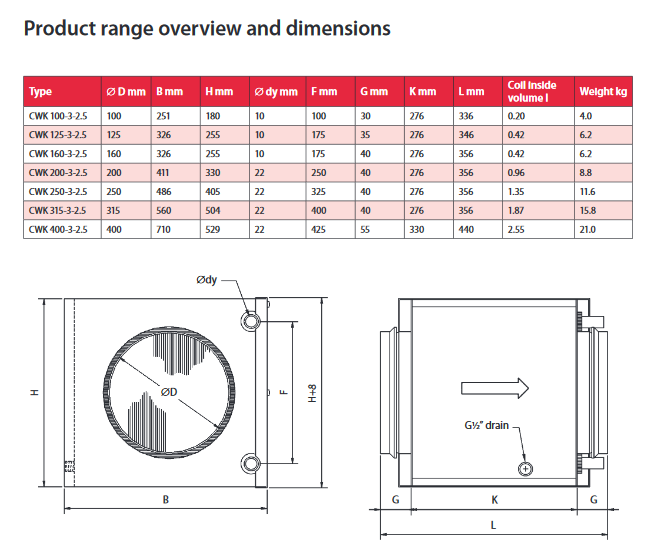

Model.
Size.
No. of rows.
Art. No.
CWK 100-3-2,5.
ø100.
3.
220020.
CWK 125-3-2,5.
ø125.
3.
220021.
CWK 160-3-2,5.
ø160.
3.
220022.
CWK 200-3-2,5.
ø200.
3.
220023.
CWK 250-3-2,5.
ø250.
3.
220024.
CWK 315-3-2,5.
ø315.
3.
220025.
CWK 400-3-2,5.
ø400.
3.
220026.
Key features:
- CWK 100/125/160/200/250/315/400 - 3-2.5
Additional information:
- Brand: Veab
- Warranty: 1 year warranty in compliance with ORGALIME S2000
- Delivery: Dependent on stock availability. Check with us before ordering
For more information on CWK Cold water fed cooling battery for circular ducts talk to Puravent
