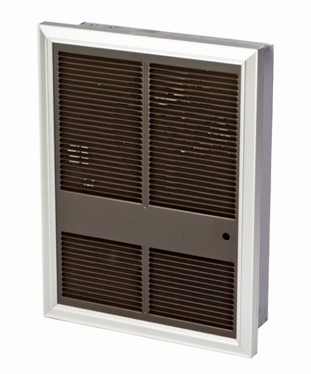

CQAC-4000

The CQAC-4000 is a 4kw 230v ~ 1ph recessed wall mounted fan heater. Although it is designed as a heater for recess mounting, it has an optional surface box to enable surface mounting. There is also a ceiling mounted version available. It is a robust fan heater for commercial areas such as entrance lobbies, stairways, corridors and waiting rooms. It is ideal for heavy traffic areas where hard knocks are possible. The integral tamper proof thermostat provides a cost effective way of controlling energy usage.

Model.

CQAC-4000.

power (watts)

4000.

voltage (v)

230.

Air Volume m3/hr.

240.

Length mm.

404.

Height mm.

530.

Depth mm.

135.

Weight kgs.

10.

Key features:

• Heating capacity: 4kw
• Mounting: Recess or surface with box
• Integral thermostat: tamper proof, on/off
• Supply: 230v
• Dimensions: L404xH530xD135mm
• Aesthetic: Dark brown with anodised frame

Additional information:

• Brand: CIH
• Warranty: 1 year manufacturer's warranty
• Delivery: Normally 2 - 3 working days. Expect within 5 working days of order
