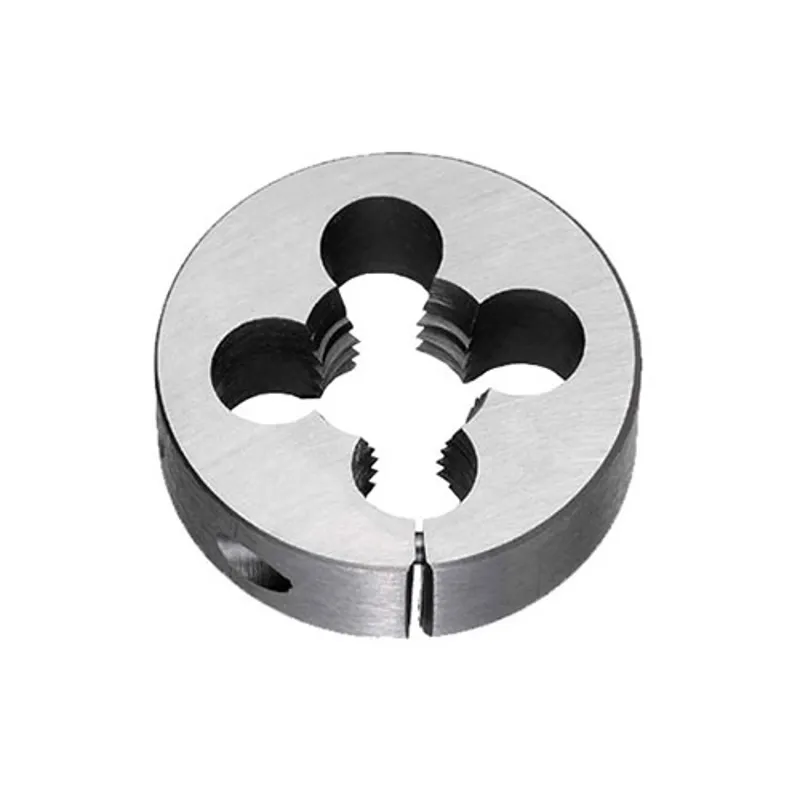

10x32 UNJF - 3A HSS Circular Split Die 13/16 or 1" o/d option

Product: 10x32 UNJF Circular Split Die Size: 10x32 tpi UNJF (0.190x32) Tolerance: 3A Material: High Speed Steel Outside Diameter: 13/16 or 1” option UNJF. "J" threads are supplied in both external and internal forms. The external thread has a much larger root radius than the corresponding UNC, UNF or UNS threads. This radius is mandatory and its inspection is required, whereas no root radius is required on UNC, UNF, or UNEF threads. Since the larger root radius increases the minor diameter, a UNJF fastener has a larger net tensile area than a corresponding UNF fastener. This root radius also gives a smaller stress concentration factor in the threaded section. Therefore, high strength bolts usually have "J" threads.

For more information on 10x32 UNJF - 3A HSS Circular Split Die 13/16 or 1" o/d option talk to JLS Supplies Ltd
