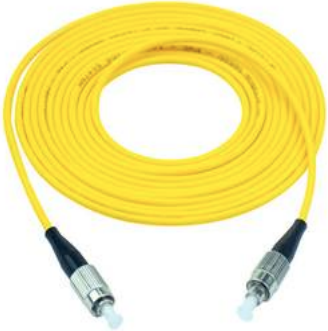

UltraL Ultra Low Loss Connectors

The UltraLTM Ultra Low Loss fibre optical connectors/patch cables achieve exceptionally low coupling loss, enabling customers to design new quantum systems or lowest loss network with higher bandwidth and longer spans. The low loss is achieved by a patent pending automatic core alignment technology that ensures each connector having below 0.07dB loss, while an ordinary connectors often has loss about 0.30dB.
The connector uses high quality ceramic ferrules with formats that are compatible with standard connectors and can be repolished to remove surface scratches. The ultra low loss performance requires mating between UltraLTM connectors. Due to the near-perfect butt-mating between the two fibres, the return loss is also high >55dB. FC/PC is the standard connector type, while other connector types can be specially made. The UltraLTM can be cost effectively produced in volume.
