Optical Wavelength Meter is available through BBN International for customers seeking specialist optical, electronic and industrial technology solutions.

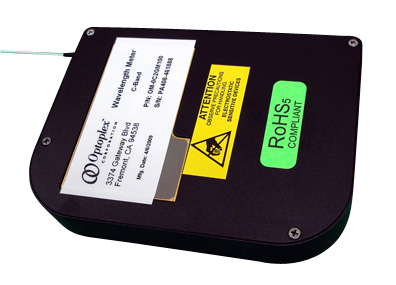

Optical Performance Monitoring of DWDM System Multi-Wavelength Monitoring for Wavelength Locking System Alarms or Error Warnings Portable OSA/Spectrometer Fibre Bragg Grating Sensor Analyser Fibre-Optic Sensing Applications, from pressure to temperature to strain Optoplex Optical wavelength meter (OWM) uses proprietary thin-film interference filter in conjunction with Fabry-Perot cavity technology combined with a micro-actuator and high-speed electronics. Its working principle is schematically shown below. By comparison with Optical channel monitor / Optical performance monitor, the proprietary wavelength reference unit is introduced to ensure high precision wavelength measurements. Optoplex Optical wavelength meter is the only DWDM wavelength meter capable of measuring wavelengths of multi-lasers in DWDM networks over C-band and L-band wavelength range with a high accuracy better than that the wavelength locker can provide. For example, the device can simultaneously report 80 wavelength values of 80 channels at 50 GHz channel spacing with the wavelength accuracy ± 2 GHz. DPRAM, RS-232, or USB interfaces are available and OWM can be customised to meet specific requirements.
Key features: High Dynamic Range; Low Temperature Sensitivity; High Reliability and Repeatability; High Wavelength Accuracy; High Wavelength Repeatability; Built-in Wavelength Reference; Compact Size; Firmware Upgradeable; Telcordia GR-468 Qualified.
Typical applications: Optical Performance Monitoring of DWDM System; Multi-Wavelength Monitoring for Wavelength Locking; System Alarms or Error Warnings; Portable OSA/Spectrometer; Fibre Bragg Grating Sensor Analyser; Fibre-Optic Sensing Applications, from pressure to temperature to strain.
For product specifications, suitability and further information, please visit the product page or contact BBN International.
Optical Performance Monitoring of DWDM System Multi-Wavelength Monitoring for Wavelength Locking System Alarms or Error Warnings Portable OSA/Spectrometer Fibre Bragg Grating Sensor Analyser Fibre-Optic Sensing Applications, from pressure to temperature to strain Optoplex Optical wavelength meter (OWM) uses proprietary thin-film interference filter in conjunction with Fabry-Perot cavity technology combined with a micro-actuator and high-speed electronics. Its working principle is schematically shown below. By comparison with Optical channel monitor / Optical performance monitor, the proprietary wavelength reference unit is introduced to ensure high precision wavelength measurements. Optoplex Optical wavelength meter is the only DWDM wavelength meter capable of measuring wavelengths of multi-lasers in DWDM networks over C-band and L-band wavelength range with a high accuracy better than that the wavelength locker can provide. For example, the device can simultaneously report 80 wavelength values of 80 channels at 50 GHz channel spacing with the wavelength accuracy ± 2 GHz. DPRAM, RS-232, or USB interfaces are available and OWM can be customised to meet specific requirements.
Key features: High Dynamic Range; Low Temperature Sensitivity; High Reliability and Repeatability; High Wavelength Accuracy; High Wavelength Repeatability; Built-in Wavelength Reference; Compact Size; Firmware Upgradeable; Telcordia GR-468 Qualified.
Typical applications: Optical Performance Monitoring of DWDM System; Multi-Wavelength Monitoring for Wavelength Locking; System Alarms or Error Warnings; Portable OSA/Spectrometer; Fibre Bragg Grating Sensor Analyser; Fibre-Optic Sensing Applications, from pressure to temperature to strain.
For product specifications, suitability and further information, please visit the product page or contact BBN International.
For more information on Optical Wavelength Meter talk to BBN International Ltd
