Electronic Film Production System Over Fibre Powered By LEMO Hybrid Cable is available through BBN International for customers seeking specialist optical, electronic and industrial technology solutions.

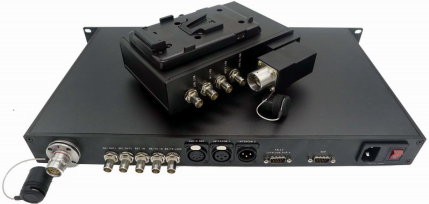

Television Broadcast(studio): Sports, News, SNG, Trackside Links Between in-field and OB van (outside broadcast truck) BY-EFP-407 includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Sony or Panasonic Remote control data, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One colour or two colours can be selected). Remote camera power supply (14VDC up to 150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Key features: Handle all Pathological patterns; Automatic cable equalisation to ensure signal integrity; 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M; 300+m on SMPTE hybrid cable; RS422 remote control; Tally LED+/- output or dry Contact Closure optional; V-mount or A-mount battery plate optional; Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection; Priority selection of hybrid cable power supply, with battery charge protection; Lemo SMPTE 304 or Neutrik OpticalCON DUO hybrid connector.
Typical applications: Television Broadcast(studio): Sports, News, SNG, Trackside; Links Between in-field and OB van (outside broadcast truck).
For product specifications, suitability and further information, please visit the product page or contact BBN International.
Television Broadcast(studio): Sports, News, SNG, Trackside Links Between in-field and OB van (outside broadcast truck) BY-EFP-407 includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Sony or Panasonic Remote control data, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One colour or two colours can be selected). Remote camera power supply (14VDC up to 150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Key features: Handle all Pathological patterns; Automatic cable equalisation to ensure signal integrity; 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M; 300+m on SMPTE hybrid cable; RS422 remote control; Tally LED+/- output or dry Contact Closure optional; V-mount or A-mount battery plate optional; Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection; Priority selection of hybrid cable power supply, with battery charge protection; Lemo SMPTE 304 or Neutrik OpticalCON DUO hybrid connector.
Typical applications: Television Broadcast(studio): Sports, News, SNG, Trackside; Links Between in-field and OB van (outside broadcast truck).
For product specifications, suitability and further information, please visit the product page or contact BBN International.
For more information on Electronic Film Production System Over Fibre Powered By LEMO Hybrid Cable talk to BBN International Ltd
