4 Channel Electronic Film Production System Over Fibre For Sony HDW-750 is available through BBN International for customers seeking specialist optical, electronic and industrial technology solutions.

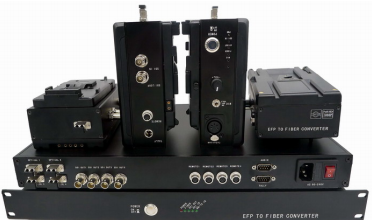

Television Broadcast(studio): Sports, News, SNG, Trackside Links Between in-field and OB van (outside broadcast truck) BY-EFP-405 includes 4 Camera Optic Adaptors and 1 Optic Base Station(4 channel). The system transports a 3G/HD-SDI signal from the Sony HDW-730 or HDW-750 series camera to the Base Station, Reverse video(SDI or CVBS),Remote control data(SONY's 8 pin interface, Connect Sony RCU/RCP RM-B150, RM-B170, RM-B750), Intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), Tally(1 or 2 colours is optional). Genlock signal, blackburst/trilevel sync or Time code is optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fibre cable, insuring robust, trouble-free connectivity on any studio or remote production.
Key features: Handle all pathological patterns; Automatic cable equalisation to ensure signal integrity; 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M; 10+Km on single mode fibre or 300m on multi-mode fibre transmission; Mic inputs with mute and pre-amps ,with amplifier for phones; Remote control for SONY's or Panasonic's camera; V-mount or A-mount battery plate is optional.
Typical applications: Television Broadcast(studio): Sports, News, SNG, Trackside; Links Between in-field and OB van (outside broadcast truck).
For product specifications, suitability and further information, please visit the product page or contact BBN International.
Television Broadcast(studio): Sports, News, SNG, Trackside Links Between in-field and OB van (outside broadcast truck) BY-EFP-405 includes 4 Camera Optic Adaptors and 1 Optic Base Station(4 channel). The system transports a 3G/HD-SDI signal from the Sony HDW-730 or HDW-750 series camera to the Base Station, Reverse video(SDI or CVBS),Remote control data(SONY's 8 pin interface, Connect Sony RCU/RCP RM-B150, RM-B170, RM-B750), Intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), Tally(1 or 2 colours is optional). Genlock signal, blackburst/trilevel sync or Time code is optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fibre cable, insuring robust, trouble-free connectivity on any studio or remote production.
Key features: Handle all pathological patterns; Automatic cable equalisation to ensure signal integrity; 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M; 10+Km on single mode fibre or 300m on multi-mode fibre transmission; Mic inputs with mute and pre-amps ,with amplifier for phones; Remote control for SONY's or Panasonic's camera; V-mount or A-mount battery plate is optional.
Typical applications: Television Broadcast(studio): Sports, News, SNG, Trackside; Links Between in-field and OB van (outside broadcast truck).
For product specifications, suitability and further information, please visit the product page or contact BBN International.
For more information on 4 Channel Electronic Film Production System Over Fibre For Sony HDW-750 talk to BBN International Ltd
