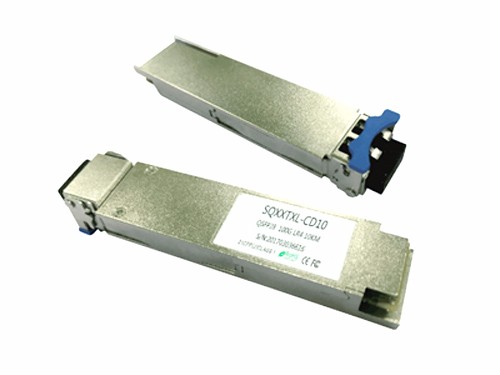

100Gbps QSFP28 LR4 10km Optical Transceiver is available through BBN International for customers seeking specialist optical, electronic and industrial technology solutions.
100GBASE-LR4 Infiniband QDR and DDR interconnects 100G Datacom connections.
Key features: Duplex LC receptacle optical interface; Single +3.3V power supply; Hot-pluggable QSFP28 MSA form factor; 4x25G Electrical Serial Interface; Compliant with 4x28G(CEI-28G-VSR); AC coupling of CML signals; Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm); Receiver: 4x25Gb/s PIN ROSA; Low power dissipation(Max:6W); Built in digital diagnostic function; Operating case temperature range:0℃ to 70℃; Compliant with 100GBASE-LR4; I2C Communication Interface.
Typical applications: 100GBASE-LR4; Infiniband QDR and DDR interconnects; 100G Datacom connections.
For product specifications, suitability and further information, please visit the product page or contact BBN International.
100GBASE-LR4 Infiniband QDR and DDR interconnects 100G Datacom connections.
Key features: Duplex LC receptacle optical interface; Single +3.3V power supply; Hot-pluggable QSFP28 MSA form factor; 4x25G Electrical Serial Interface; Compliant with 4x28G(CEI-28G-VSR); AC coupling of CML signals; Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm); Receiver: 4x25Gb/s PIN ROSA; Low power dissipation(Max:6W); Built in digital diagnostic function; Operating case temperature range:0℃ to 70℃; Compliant with 100GBASE-LR4; I2C Communication Interface.
Typical applications: 100GBASE-LR4; Infiniband QDR and DDR interconnects; 100G Datacom connections.
For product specifications, suitability and further information, please visit the product page or contact BBN International.
For more information on 100Gbps QSFP28 LR4 10km Optical Transceiver talk to BBN International Ltd
