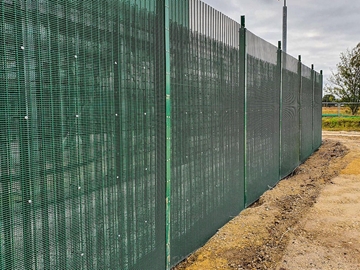

CorruSec SR4 Rated Perimeter Security Fencing

CorruSec D10 (SR4) fencing is a patent-pending innovative high-security fencing system designed and developed by Zaun. Independently tested by BRE and entered into the RED BOOK, CorruSec D10 SR4 Fencing successfully passed and achieved the security rating LPS1175 SR4 under issue 7 and D10 under issue 8. A unique construction specifically designed to provide a minimum delay time of at least 10 minutes when independently tested following the BRE SR4 testing protocol. The specially configured mesh system has been independently tested to defeat various attack methods, including hand and power tools. Ideal for protecting assets, including water utility sites, oil and gas compounds, data centres, and other critical, national importance (CNI). The robust fencing solution also provides good visibility for use with CCTV camera systems. CorruSec D10 (SR4) is configured using HiSec Super 10 to the front and rear panels and a corrugated HiSec 3/5/10 mesh panel in the centre. Each flat panel features a 76.2mm x 12.7mm mesh configuration with 4mm horizontal and 10mm vertical wires. In addition, a buried version of CorruSec D10 (SR4) is available, where the rear HiSec Super 10 panel is replaced with standard HiSec 358. Whichever configuration is used, care must be taken with weed suppression to ensure weeds cannot grow inside the fence. This would apply to ANY multi-layer fence from any supplier. The corrugated section was pressed to approximately 80mm in depth. All three layers are bolted together using bolts fixed into a grid pattern throughout the combined fence panel. At a minimum height of 2.8 metres high, CorruSec D10 (SR4) features a maximum corrugated infill of 2.4 metres high. Supplied with widths of 2.5 metres with 2540mm post centres with a double row of fixings. Posts designed using 80x80mm SHS and available in either bolt down or in-ground post options. Full panel assembly fixed to the posts using 80mm full height clamp bars with fixing centres of 9 inches (228.6mm).

For more information on CorruSec SR4 Rated Perimeter Security Fencing talk to Zaun Ltd
