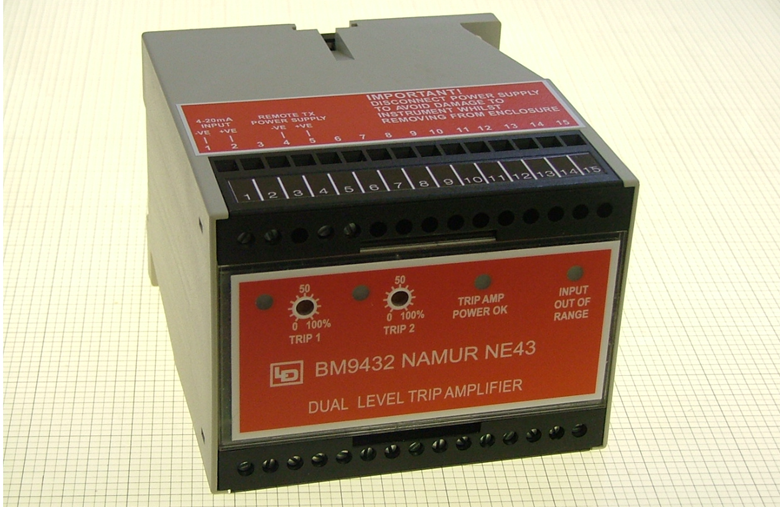

Namur Ne43 Dual Level Trip Amplifiers

NAMUR NE43 specification trip amplifiers are used for monitoring a 4 to 20mA input signal and to give process trips as well as an "Out of Range" trip. The NAMUR NE43 requirements are to trip when the input signal is below 3.8mA or above 20.5mA. Lee-Dickens supplies two types of NAMUR NE43 DIN rail mounting Dual Level Trip Amplifiers each of which can power the input loop, if required. The trip amplifiers come as standard with two process trips and additional internal alarm relays/LEDs for “Out of Range Input” and “Power OK/Fail”. The process trips can be configured as Low or High trips, as required. Both NAMUR NE43 Dual Level Trip Amplifiers are SIL rated. The trip amplifiers are compliant with NAMUR NE43, being able to detect faulty transmitters whose outputs are below 3.8mA or above 20.5mA.

For more information on Namur Ne43 Dual Level Trip Amplifiers talk to Lee-Dickens Ltd
