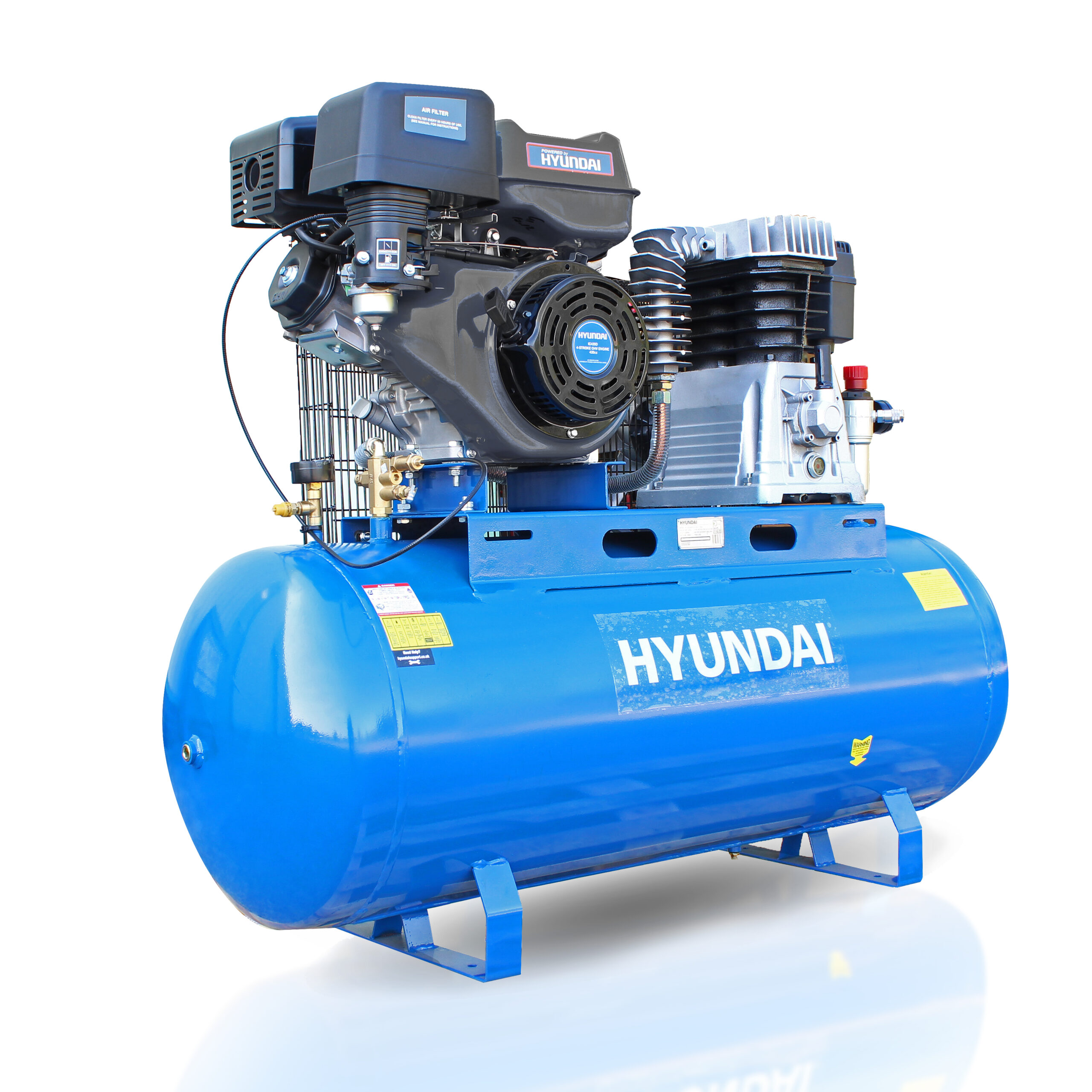

Hyundai 200L Litre Air Compressor, Twin Cylinder Belt Drive - 29CFM, 14HP - HY140200PES

Heavy-Duty The HY140200PES is a powerful 14hp twin cylinder cast iron belt drive air compressor from Hyundai. Designed for professional workshops, mobile tyre fitting vehicles and trade applications the HY140200PES air compressor is ideal for powering heavy duty commercial vehicle 1" drive impact guns, inflating super single commercial vehicle tyres and general heavy mobile use. 4 Robust Feet Weighing 145kg the HY140200PES features 4 robust feet that can also be mounted to a vehicle for maximum transportability. Built To Last The twin-cylinder slow running pump with aluminium cylinder head and cast iron liners for improved resistance to wear. Electric Key Start Powered by the electric key start 14hp IC420 Hyundai petrol 4-stroke engine makes the HY140200PES petrol air compressor ideal for mobile commercial tyre fitting. Long Stress-Free Lifespan The slow-running twin cylinder pump is belt driven and runs at 1050rpm, to give it a long stress free lifespan. Maximum pressure is automatically controlled by the safety valve which reduces engine speed to tick over when maximum pressure of 10bar is reached. Large 200L Tank The large 200 litre tank capacity provides a constant supply of air for tools that need a high flow rate up to 800 litres per minute. Twin air outlets for increased versatility allow two air-lines / tools to be connected at the same time. For high flow rates, the air hose can be connected directly to the air tank. The pressure regulator with twin gauges allows for controlled adjustable air pressure. Ideal For Professional Use This air compressor provides a fantastic combination of performance and durability ideal for professional applications in any setting. Compressor Care Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it from being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank. In the Box: HY140200PES 4 Rubber feet User manual Please note: this compressor is not supplied with a battery Warranty Covered by Hyundai 2 year standard warranty. Specifications Model HY140200PES Start Method Electric or Recoil Fuel Type Petrol Drive Type Belt Drive Stationary / Wheeled Stationary Tank Capacity (L) 200 Tank Material Rolled Steel Cut-In Pressure (psi/bar) 116/8 Cut-Out Pressure (psi/bar) 116/8 Discharge Pressure (psi/bar) 116/8 Max Pressure (psi/bar) 145/10 Air Flow FAD (L/min) 600 Air Flow FAD (CFM) 21 Air Displacement (L/min) 800 Air Displacement (CFM) 29 Air Outlet Connection 1/2? BSP/2 x Euro Quick Release Outlet Pressure Regulation Type Adjustable Engine Size (cc) 420 Engine Model IC420E Engine Type Single Cylinder Fuel Capacity (L) 6.5 Engine Oil 15W40 Engine Oil Capacity (ml) 1100 Rated Power (w) 9100 Motor Power kW/hp 9.1/13 Pump (RPM) 1050 Speed (RPM) 3000 Noise Level (db) 91 Gross Weight (kg) 148 Net Weight (kg) 138 Fully Assembled Dimensions (H x W x L) (mm) 980 x 500 x 1310 Packaged Dimensions (H x W x L) (mm) 1020 x 520 x 1360 Product Type Air Compressor Warranty (years) 2 Model EAN 5056275722760 In The Box HY140200PES, 4 Rubber Feet & User Manual Engine: 14hp Hyundai IC420E Engine Type: Hyundai IC420 Single Cylinder, 4-stroke, Forced Air Cooling, OHV E-Start Engine Size (cc): 420.00 Oil Capacity (ml): 1100.00 Fuel Capacity (L): 6.50 Horsepower (hp/kW): 14/9.67 Fuel Type: Unleaded Petrol Engine Speed (rpm): 3000.00 Pump Speed (rpm): 1050.00 Start Method: Recoil / Electric Start Maximum Pressure (PSI/Bar): 145 / 10 Cut-in Pressure (PSI/Bar): 116/8 Tank Capacity (L): 200.00 Pump Displacement (CFM / L/min): 29/800 Air Outlet Size (mm): 1/2" BSP thread and 2 x Euro Q/R Fittings Dimensions L x W x H (mm): 1320 x 470 x 1200 Tank Material: Rolled Steel Net Weight: 145kg
