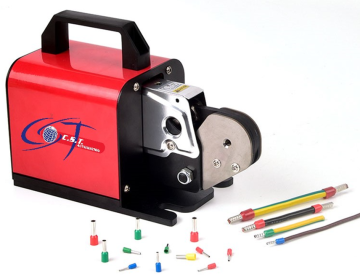

320S Ferrule Crimping Machine

New Model Pneumatic Ferrule Crimping Machine 320S Different from manual crimp tools, the 320S series crimpers are lightweight and very efficient, so to reduce the physical force required by hand tools but offer a more reliable crimping effect.  The operation is very simple and standardized, even novices can handle this.  The 320S series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.    Specification Model - 320S Pneumatic Ferrule Crimper Function - Loose ferrule / end sleeve, square profile crimping Capacity  - 10mm² Crimping Force  - 13KN Locator - 3 pcs Air Regulator - Yes Activation - Foot pedal Air Supply - 0.3 - 0.8 MPa (clean and dry air) Dimensions - L151 x W100 - H150mm Weight - 4KG CE-Conformity - Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

For more information on 320S Ferrule Crimping Machine talk to CST Automation Limited
