What is a Case Erector?

In fast-paced packaging environments, speed and consistency matter. A case erector (sometimes called a carton erector) helps automate box setup, providing a reliable way to prepare cases for product loading at higher volumes.

What is a case erector?

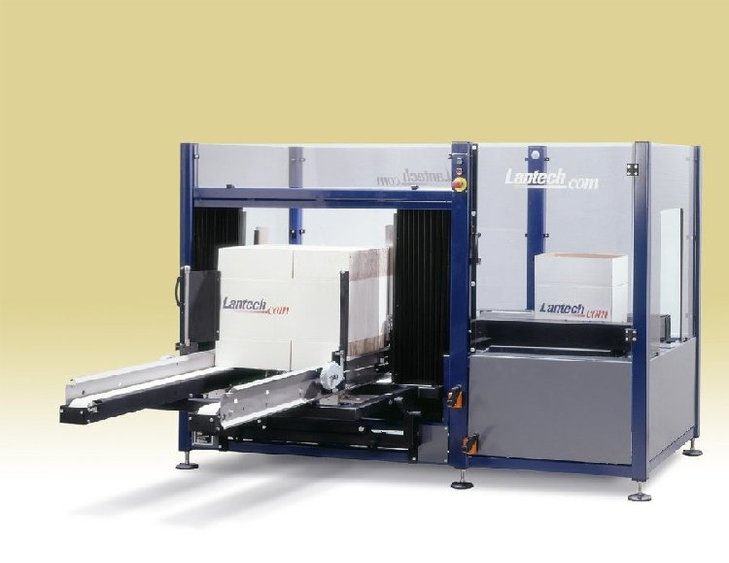

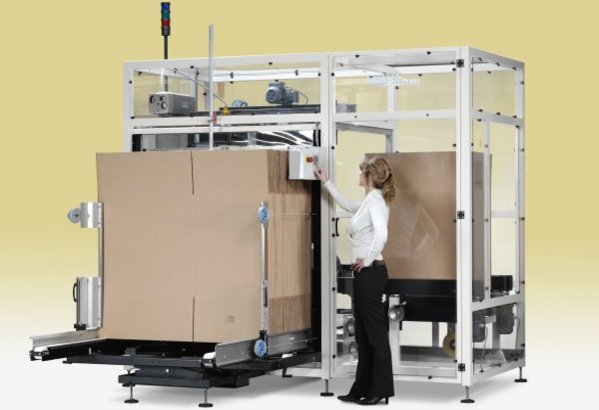

A case erector is a machine designed to assemble and erect flat-packed cardboard boxes. It takes a flat case blank, opens it into shape, folds the bottom flaps, and seals the base with tape or glue—leaving the case ready for product insertion.

How does a case erector work?

1) Magazine loading

Flat-packed cases are loaded into the machine’s magazine. This is often done manually, though some systems support assisted or automated loading depending on the model.

2) Picking

The machine picks a single flat case from the magazine, commonly using suction cups or other gripping mechanisms.

3) Erecting

The case is opened and squared up into its box shape using a combination of belts, arms and guides.

4) Bottom folding and sealing

Bottom flaps are folded in the correct sequence, then sealed using tape or hot-melt glue (depending on the setup).

5) Discharge

The completed, sealed case is discharged—ready to move to the next stage for product loading.

Benefits of using a case erector

• Increased efficiency: can process far more cases per hour than manual assembly
• Consistency and reliability: repeatable forming and sealing reduces variation and errors
• Labour savings: frees operators for higher-value tasks and reduces physical strain
• Versatility: many machines handle multiple case sizes with quick changeovers
• Reduced material waste: fewer damaged cases thanks to more controlled forming

In summary, a case erector is a valuable tool for improving throughput and repeatability in end-of-line packaging, helping businesses scale output while maintaining consistent case quality.
