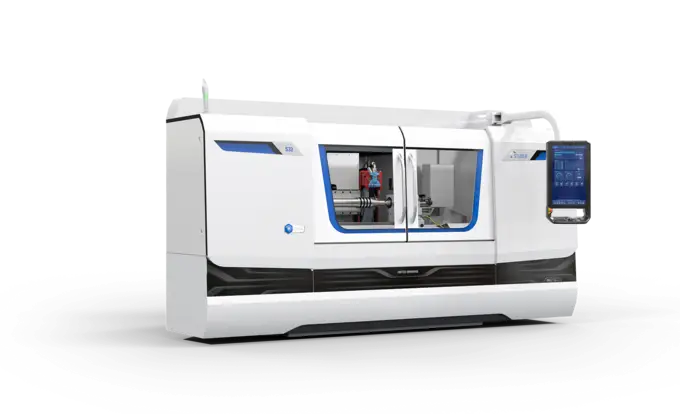

S33 CNC Machines

The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces. It has a distance between centres of 400mm (15.7″) / 650mm (25.6″) / 1,000mm (40″) / 1,600mm (63″) and a centre height of 175mm (6.9″). It can machine workpieces with a maximum weight of 150kg (330lbs).

Changing over from grinding between centres to live spindle grinding is particularly easy on this machine. The new wheelhead with two motor spindles enables grinding of even more complex workpiece geometries in a single clamping. Its foundation is a machine base made of solid Granitan® S103

For more information on S33 CNC Machines talk to Advanced Grinding Supplies Ltd
