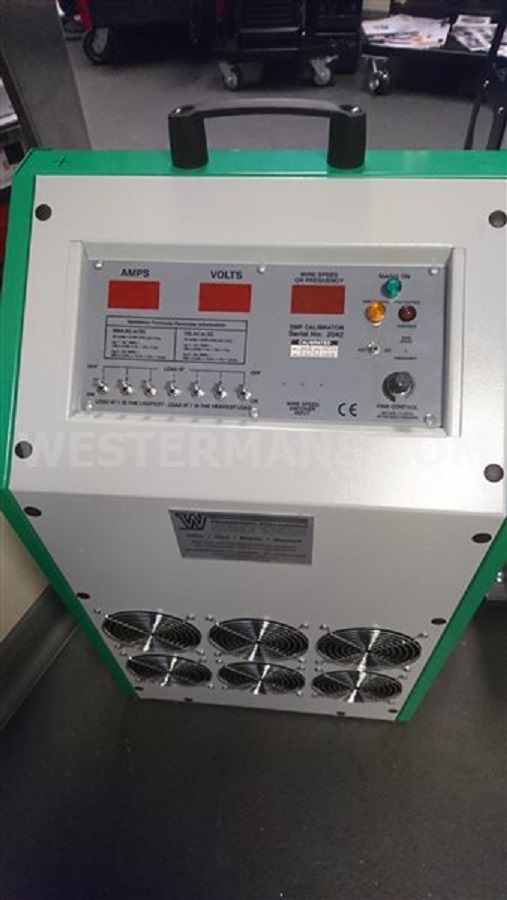

Welder Calibrator 600/1000a AC/DC Validator [Westerman 13]

Description: New units made in Britain comes with traceable Calibration Certificate plus CE declaration of conformity This unit is fitted with calibrated meters, adjustable load settings and a fine tune load setting Use of the different loads combined with the fine tune enables virtually every possible parameter to be achieved up to 600A The different loads are easily selected using small panel switches which switch heavy duty contactors This calibrator is designed to be easy to wheel around workshops and into vehicles Max current 600A (AC & DC) Additional Load Bank for up to 1000 amps Voltage range 0-99.9V. BS EN 50504 2008 working standard EN IEC 60974-14 Load switches, 7 + fine tune circuit Display, LED with true RMS readings, Accuracy +/- 0.5% + 1 digit, Power supply 110/230V 300VA Supplied c/w leads & calibration certificate ready to go, option for wire speed and additional load bank for up to 1000 amps option Simple add on unit gives an instant calibration status on any DC MMA/Mig power source in compliance with BS EN 50504:2008 (calibration of welding equipment) and ISO 9000 (quality systems) suitable for any MMA or Mig upto 600 amps making it ideal for use on most power sources in the field The units are arc voltage powered and can be fitted and running in minutes. come calibrated for 1 year, calibrations after that period can be carried out very easily due to the adjustor access holes in the front panel If you want to guarantee that the quality of your welding equipment is up to scratch in the long term, you’ll need to calibrate them on a regular basis For companies working with welding technology, it is essential that systems deliver consistent welding results without fail throughout their service life.

For more information on Welder Calibrator 600/1000a AC/DC Validator [Westerman 13] talk to 2000 Test Equipment Ltd
