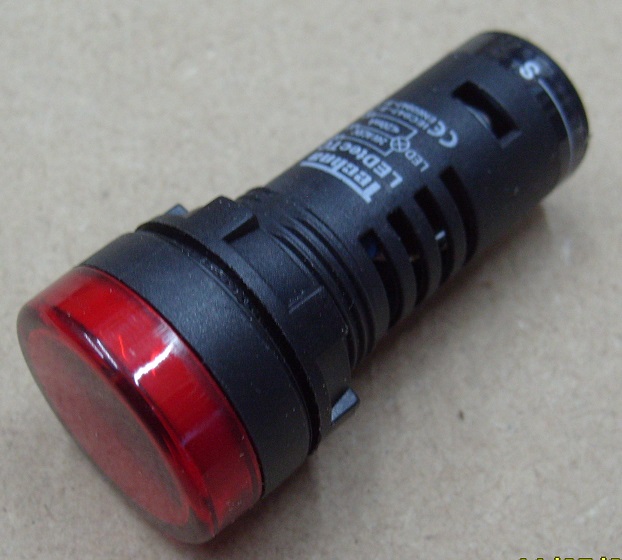

LED Indicator with Test Circuit Red 24V AC/DC [LEDtec TCred]

24V LED Indicator Red with Lamp Test Connection • Long-lasting, efficient pilot lights, replacement bulbs and combination indicator / sounder units. • Multi-chip technology provides bright, even colour at low power consumption. • Available in Red, Green, Yellow, Blue and White, in a range of voltages from 6V to 230V. • Quick and easy instalation with back of panel lock-nut and captive screw terminals tu-csa-tuv • Environmental protection up to IP65 • TUV, UL and CSA certification for use in Europe, US and Canada (LEDtec standard 22.5mm) • Custom voltage and terminal / flying lead options available (subject to MOQ) Voltages Available (Vn) 12, 24, 48, 120Vac/dc and 230Vac Operating Voltage Range Vn +/- 15% Frequency (ac) 50 - 60Hz Insulation Resistance ≥ 2MΩ Insulation Withstand 2.5kVac, 1 minute Current/Power Consumption ≤ 20mA IP Rating (from front) IP40 Brightness ≥ 60 cd/m3 Operational Life 30,000 hours Temperature Range -25°C to +55°C Relative Humidity ≤ 98%

For more information on LED Indicator with Test Circuit Red 24V AC/DC [LEDtec TCred] talk to 2000 Test Equipment Ltd
