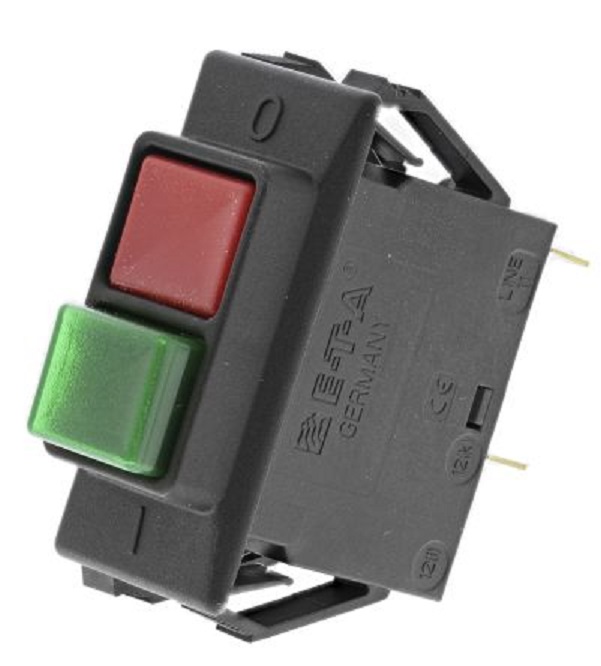

ETA 16A 2 Pole Thermal Magnetic Circuit Breaker, 50 V dc, 250 V [15A Thermal]

ETA 15A 2 Pole Thermal Magnetic Circuit Breaker, 50 V dc, 250 V ac 3120 Suitable for Clare B255 & D255 New Version 2022 with LED Illumination on Green Button when ON Technical Reference VDE 101063 UL E67320 UL_ QVNU2.E67320 BUREAU VERITAS 06793/B0 Legislation and Compliance RoHS Certificate of Compliance Statement of conformity COO (Country of Origin): TN Product Details CBE, 2 Pole Sensing, 2 Pole Switching, Twin Button, 3120 Series IEC Classification S/TO (with modules, S/TM),This range of twin button on/off control type breaker offers significant cost and space saving over conventional master control gear products. With the addition of magnetic modules or zero volt release modules, these products can successfully replace motor control gear products for low rated motors.,Basic tripping times at 2xIN, 20-30 seconds.,Circuit protection designed for equipment, sub-systems and components. Depth behind panel: 43mm Approvals UL, VDE, BV Thermal Magnetic Convertible All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms). Specifications Attribute Value Current Rating 15A Number of Poles 2 Width 25mm Series 3120

For more information on ETA 16A 2 Pole Thermal Magnetic Circuit Breaker, 50 V dc, 250 V [15A Thermal] talk to 2000 Test Equipment Ltd
