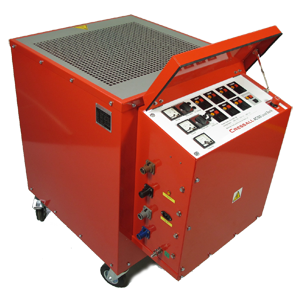

AC100 110/230/400v Load Bank Generator Tester [AC100]

Dimensions 1150 x 700 x 800mm high Weight 140kg. Delivery by Quotation up to £300 AC100 load bank for generator testing The Cressall AC100 load bank is designed for on-site testing of three-phase AC generators and power supplies at 400/230V at continuous powers adjustable up to 100kW. Every model is complete with all meters, controls and power leads with quick-release in-line connectors. ac100 Capacity 415V 3 phase, 50/60Hz: 100kW in 1.25kW steps 240V 1 phase 50/60Hz: 33kW in 400W steps Other AC voltages Lower AC test voltages can be applied; the maximum power is reduced accordingly. For example: 220V 3 phase, 50/60Hz: 28kW in 350W steps 110V 1 phase, 50/60Hz: 7 kW in 85W steps Controls Integral control panel with hinged weatherproof lid with: 1 – 48mm DIN voltmeter 0-500V linear with selector switch 1 – 48mm DIN ammeter 0-150A linear with selector switch 1 – 48mm DIN frequency meter 45-65Hz 7 – ‘on/off’ pushbuttons (1.25, 2.5, 5, 10, 20, 20, 40kW) 7 – indicator lamps, one per section 1 – ‘on/off’ pushbutton for fan start/stop 1 – indicator lamp ‘fans running’ 1 – input socket for external 220/240V AC supply, with selector switch 1 – emergency stop button Resistor Elements Metal sheathed wire elements manufactured from high-grade nickel/chrome resistance wire in magnesium oxide insulated stainless steel tubes and 600V primary insulation. Cooling Fan cooled with a single 450mm fan powered from the test load itself or an external supply. The fan is mounted in the base of the load bank and blows vertically through mesh bird screens top and bottom. DC voltages A dual AC/DC model is available at extra cost, having all the capabilities of the standard version plus an additional rating of 0 – 190A (42kW) at 220V DC.

For more information on AC100 110/230/400v Load Bank Generator Tester [AC100] talk to 2000 Test Equipment Ltd
