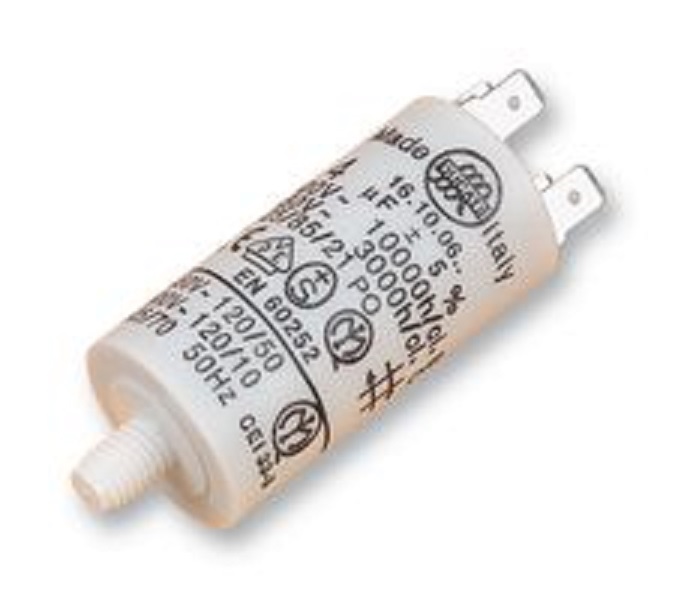

40uF Capacitor [CAP 40uF]

Motor Run Film Capacitor 40 µF, 4.16.10 Series, 450 V Quick Connect, Snap-In, ± 5% - 4.16.10.29.64The 4.16.10.29.64 is a snap-in Electric Motor Capacitor is used for start and run. This 4.16.10 series is supplied with the main international approvals (IMQ-VDE-GOST). The dielectric is polypropylene film, the electrodes consist of an extremely thin metal coating obtained by vacuum evaporation. Case and cover are made with self-extinguishing plastic material, the capacitive element is sealed with polyurethane resin. The FAST FIX system (patent no. UD 92A000164) allows a quick mounting of the capacitors on the equipment and it is suitable for plates which thickness is between 0.8 and 1.1mm. The required drilling allows, anyway, the alternative standard mounting by means thread stud. 45mm Diameter M8 stud Low losses non-inductive winding Self-healing property avoiding short-circuits Small size and limited weight No leakage risk IP00 Protection rating
