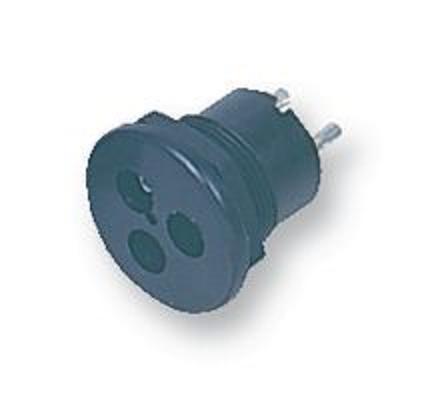

![230V 3A Bulgin Miniature Panel Socket 3 Pin
[CX-Min3PS]](https://www.2000testequipment.co.uk/store/images/Bulgin%203%20Panel%20Socket.jpg)
Description 3 POLE MINIATURE PANEL
Connector Mounting:Panel
Contact Termination:Solder
Current Rating:3A
Gender:Receptacle
SVHC:No SVHC (20-Jun-2011)
Voltage Rating:250VAC
Breakdown Voltage Vbr:4.2kV
Connector Type:Circular
Connector Type:Standard Power Entry
Contact Material:Brass, Tin Plated
Contact Resistance:10mohm
External Diameter:25.4mm
External Length / Height:28.4mm
Insulation Resistance:10000Mohm
Material:Glass Filled Nylon
Mounting Type:Panel
No. of Outlets:1
No. of Poles:3
No. of Ways:3
Operating Temperature Max:70°C
Operating Temperature Min:-20°C
Termination Method:Solder
Voltage Rating VAC:250V
For more information on 230V 3A Bulgin Miniature Panel Socket 3 Pin [CX-Min3PS] talk to 2000 Test Equipment Ltd
