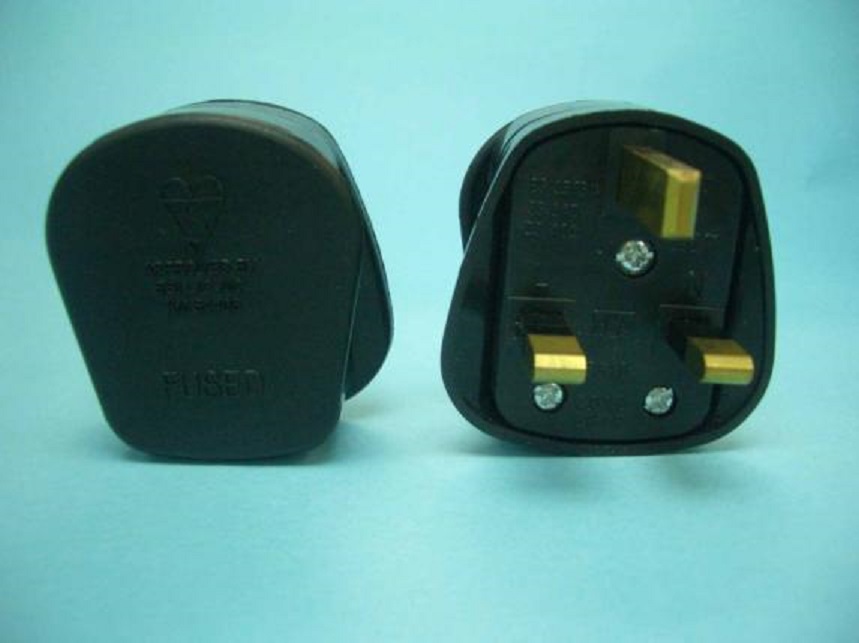

230V 13a Nylon Plug Black with Screwed Cord Grip [13aPBlack]

1. PRODUCT: 13A rewireable plug 2. CURRENT RATING:13A 250 V ac Fuse Rating: 13A 3. CONSTRUCTION: ITEM DESCRIPTION MATERIAL 1 Plug base and cover FRPP 2 L/N/E pin Brass 3 Fuse clips Brass 4 Cord grip Nylon (PA) 5 Screw steel 6 Wiring instruction card paper 7 Fuse 13A complied with BS1362 4. APPROVAL: PLUG: BSI Kitemark licence KM54406 Fuse: BSI Kitemark license KM21062 5. STANDARD: BS 1363/A 7. CONDITIONS OF USE a) an ambient temperature in the range -5º C to +40º C, the average value over 24 hours not exceeding 25º C. b) a situation not subject to exposure to direct radiation from the sun or other source of heat like to raise temperatures above the limits specified in a); c) an altitude not exceeding 2000 metres above sea level; d) an atmosphere no subject to abnormal pollution by smoke, chemical fumes, rain, spray, prolonged periods of high humidity or other abnormal conditions. 8. SAFETY SPECIFICATIONS NO. ITEM CONDITIONS REQUIREMENTS 1 Appearance No defect such as cracks, deep scratches or blemishes 2 Marking Shall be legible and must be clear 3 Insulation Resistance 500 + 250 V d.c. 1 min Shall not be less than 5 MΩ 4 Dielectric strength 2000 +/- 60 V 1 min No damage or breakdown 5 Resistance to aging 70º +/- 5º 168 hrs No cracks or become sticky 6 Construction 20º +/- 5º Complied with Figure 5 gauge 7. Torque test Value of 0.6N.m. (6.1 kgf/cm) Terminal, cord grip and cover screws shall withstand the torque applied 8 Glow Wire Test 650º/750º electrically heated Flame must extinguish within 30 seconds.9 Temperature rise 14 A 250 V Temperature rise must not exceed:9 Temperature rise 14 A 250 V Temperature rise must not exceed: 1. Terminals or terminations : 52K 2. Accessible surface: 52K 10 Drop Test Fit with 3G1.25mm2 cable, 150mm and put in tumbling barrel for 5000 drops. No external damage which might affect safety and no components shall have become detached. 11 Live parts accessibility subjected to 1.0 mm test probe with applied force of 5N when they are mounted and wired as in normal use.

For more information on 230V 13a Nylon Plug Black with Screwed Cord Grip [13aPBlack] talk to 2000 Test Equipment Ltd
