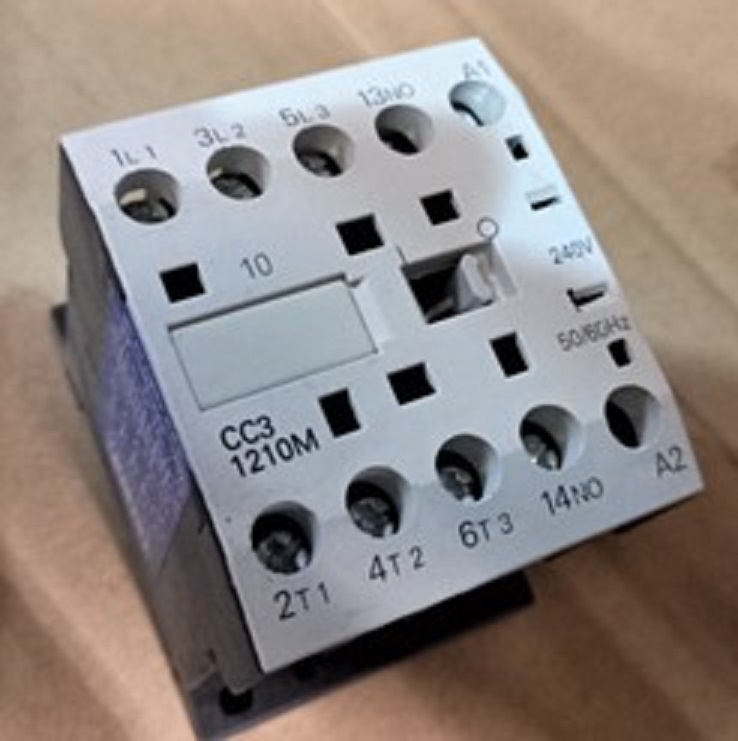

20A CPN 3 Pole Contactor 415V Coil CC31210M/N7 [TB-CPN 40a C]

CC31210M/N7 This Unit 415V Coil, AC3 Rated Operating Current 12A A suitable replacement for Iskra Mini Contactor K07M-10/380/415V 50/60Hz CONSTRUCTION AND FEATURES: • For use in high current load switching applications, including the frequent starting and control of motor. • DIN rail or panel mounting. • AC coil variants available: 24V (B7), 48V (E7), 110V (F7), 240V (U7), 480V(N7). • Variety of complimentary auxiliaries and overload relays. Which can be assembled with the contactor TECHNICAL DATA: • AC3 Rated operating current: 9A or 12A AC3 • AC4 Rated operating current: 3.5A or 5A • Coil frequency: 50/60Hz • Insulation voltage: 690 VAC • Operating temperature: -5°C to 40°C • Mechanical life: 10,000,000 • Cable size: 2.5mm² • Screw size: M3 • Tightening torque: 0.5Nm • Conforms to: EN 60947-4-1 DIMENSIONS: • H = 57mm, W = 45mm, D = 58mm

For more information on 20A CPN 3 Pole Contactor 415V Coil CC31210M/N7 [TB-CPN 40a C] talk to 2000 Test Equipment Ltd
