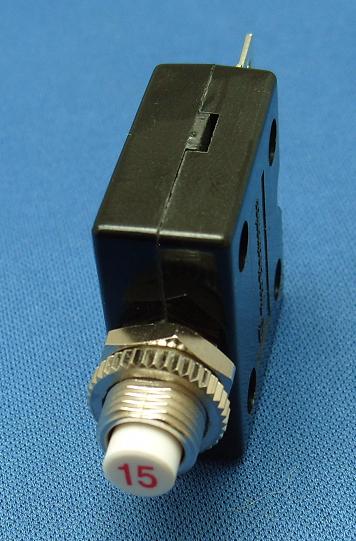

15A Thermal Manual Reset Switch [CP-Therm 15]

CIRCUIT BREAKER, 15A Mounting Type:9.8 x 12.6mm No. of Poles:1 Voltage Rating AC:250V Voltage Rating DC:50V Approval Category:UL Recognised Colour:White Current Rating:10A External Depth:31mm External Length / Height:35mm External Width:14.6mm Max Operating Temperature:60°C Min Temperature Operating:0°C Overload Capability:10 x Rated Current Dielectric Strength, VAC:1500V ac Insulation Resistance:100Mohm Internal Resistance:0.025ohm Panel Cut-out Diameter:11.2mm Termination Method:6.3 x 0.031mm

For more information on 15A Thermal Manual Reset Switch [CP-Therm 15] talk to 2000 Test Equipment Ltd
