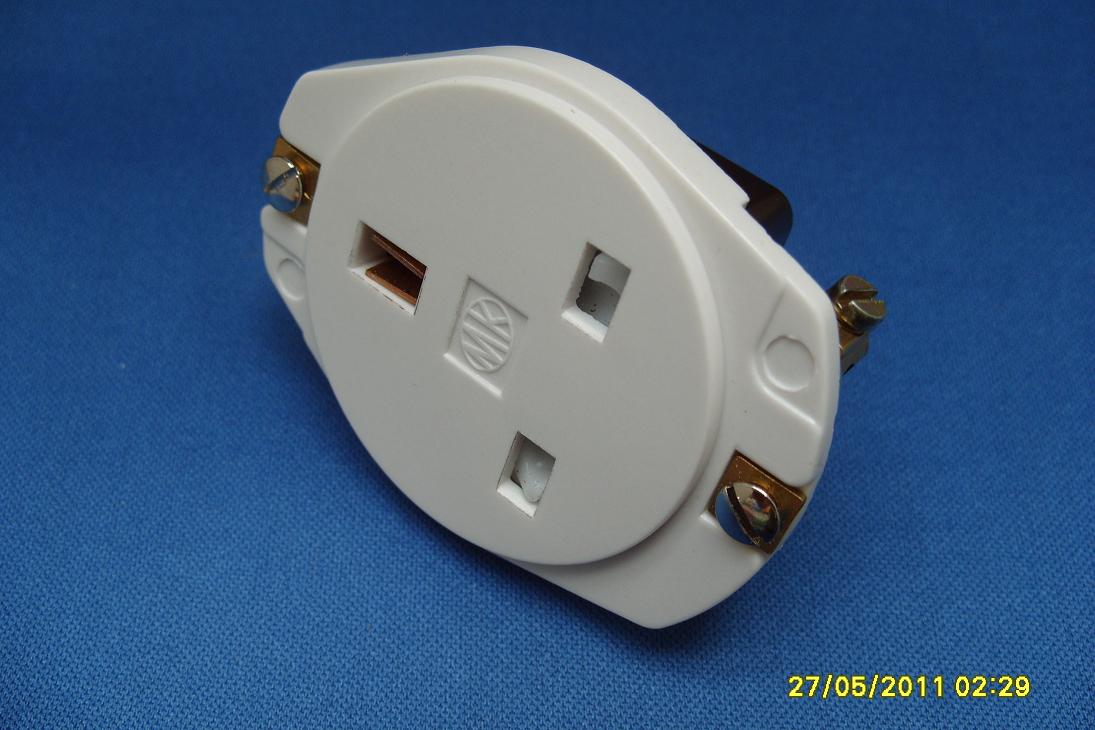

13A Circular Panel Socket MK [CP-13A Panel]

1 GANG OUTLET - PANEL MOUNT SVHC:No SVHC (18-Jun-2010) Approval Bodies:BS1363: 1984 Behind Panel Depth:23mm Colour:White Current Rating:13A Fixing Centres:60.3mm Material:Urea Formaldehyde Panel Cutout Diameter:50mm Panel Thickness:2mm 13A 1 gang socket for panel mounting. The socket features white urea formaldehyde moldings, 3mm contact gaps, 2-pin operated shutters, and side entry terminals. Mounting is via the M3.5 threaded outlets, and the panel onto which the socket is mounted must extend a minimum of 10mm in each direction to conform to BS1363. Maximum panel thickness is 2mm. 1 gang socket for circular cutouts. Cutout: 50mm dia. Fixing centers (vertical): 60.3mm. 10 Year Guarantee.

For more information on 13A Circular Panel Socket MK [CP-13A Panel] talk to 2000 Test Equipment Ltd
