110WMT]

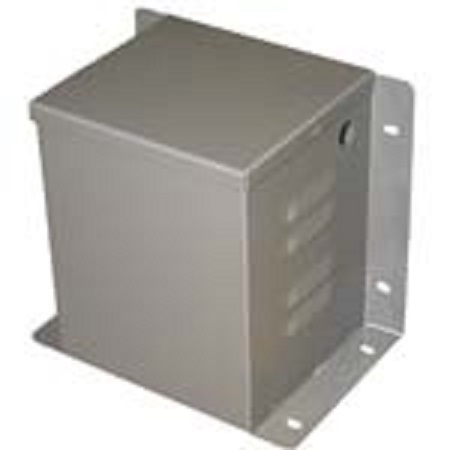

DESCRIPTION: Single phase double wound safety isolating transformer. Enclosed to IP22. Transformer manufactured to BS-EN61558 where applicable. PRIMARY: 230V 1-Ph hard wired to 10mm² terminal blocks. SECONDARY: 110V CTE (55-0-55V) hard wired to 35mm² terminal blocks. FREQUENCY: 50/60Hz RATING: 10000VA continuous ENCLOSURE: Sheet steel vented suitable for wall or floor mounting to IP22 Hammer grey powder coat finish. DIMENSIONS: H: 480m, W: 440mm, D: 335mm aprx WEIGHT: 70 Kg aprx

For more information on 10KVA Continuous Cased Wall/Floor Transformer [TR230/110WMT] talk to 2000 Test Equipment Ltd
